Product Overview
MiniMeta is a highly dependable and multifunctional single - gas
detector, having successfully acquired IECEX/ATEX/EMC
certifications. These certifications serve as evidence of its
compliance with the most rigorous international safety and
electromagnetic compatibility norms. For example, the IECEX
certification verifies its fitness for use within explosive
atmospheres. Meanwhile, the ATEX certification validates its safety
in potentially perilous environments throughout Europe. The EMC
certification assures that MiniMeta will not cause interference
with other electronic devices and can function efficiently in an
electromagnetic - noise - filled environment.
One of the most outstanding characteristics of MiniMeta is its
capacity to detect hundreds of user - specified toxic gases. Be it
the commonly encountered yet dangerous carbon monoxide, the pungent
- smelling hydrogen sulfide, or a broad spectrum of other noxious
gases, MiniMeta has been engineered to identify them with great
accuracy. This extensive detection range renders it an excellent
choice for a variety of industries. These include the oil and gas
sector, chemical manufacturing, mining, and even in environmental
monitoring applications.
Regarding user - friendliness, MiniMeta has been designed with the
operator's convenience in mind. The interface is intuitive,
enabling even those with minimal technical expertise to operate the
device effortlessly. Simple controls and clear displays ensure that
users can quickly grasp the readings and any alerts. Additionally,
the device is equipped with user - friendly features such as easily
navigable menus and distinct, easily recognizable audible and
visual alarms.
Both the battery and sensor of MiniMeta are replaceable, which is a
significant advantage for long - term usage. The replaceable
battery ensures that the device can operate continuously. Users
need not worry about the detector running out of power during
crucial monitoring periods. Instead, they can simply replace the
battery and resume their gas monitoring tasks. Similarly, the
replaceable sensor allows for the long - term functionality of the
device. Since sensors may deteriorate over time due to exposure to
various gases, the ability to replace them means that MiniMeta can
continue to provide accurate readings for an extended duration.
This not only offers users long - term protection but also helps in
reducing overall maintenance costs.
MiniMeta has been strategically devised to offer a cost - effective
and long - term - ownership gas monitoring system. By providing a
high - quality yet affordable solution, it enables businesses,
especially those with budget limitations, to implement a reliable
gas monitoring strategy. The combination of its wide detection
range, user - friendliness, and replaceable components makes it an
investment that yields long - term benefits, ensuring continuous
and efficient gas monitoring while keeping costs in check.

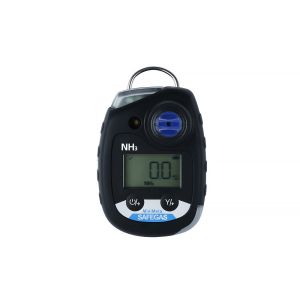

Product Picture
Product Specification
Detect gas | Ammonia(NH3) |
Sensor type | Electrochemical |
Sampling method | Diffusion |
Measure range | 0-200ppm, 0-1000PPM |
Resolution | 0.1ppm, 1PPM |
Precision | ≤± 3% F.S. |
Response Time | ≤30s(T90) |
Unit | PPM |
Display | Gas name, concentration unit, measured value, electricity |
Alarm mode | Sound, light, vibration alarm, high and low alarm values can be set
by yourself |
Alarm type | Low alarm, high alarm, STEL, TWA, low battery |
Display | LCD Display |
Operating language | Chinese/English |
Size | 90*60*33mm |
Weight | 125g |
Working Temperature | -20ºC~50ºC |
Working Humidity | 0-95%RH |
Working air pressure | 86~106kpa |
Product Advantage
1) IP68 water- and dust-resistant case
2) Low power consumption with 2 years standby time, no need battery
charge and calibration
3) With Single /multi unit docking station to perform daily bump
test and calibration (Optional)
4) With event and data logging function (Optional)
5) With self-test function, which can improve safety by automatic
self-test
6) Small size, lightweight and with back clip for easily carry
7) 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and
vibration alarm
8) Real time value, TWA, STEL, MAX, MIN multiple numerical display
Standard
1) Portable gas detector 1 piece
2) Calibration cap 1 piece
3) User manual 1 piece
4) Certificate of conformity/ Warranty card 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co.,
Limited(Safegas)is a company that focuses on the design, production
and sales of gas detection equipment and system for 16 years.
With"gas detector" as the core product, we have completed
production line and solutions according to different industries,
such as Oil, Chemical, Medicine, Energy, Environmental Protection,
Electronic, Municipal Engineering, Agriculture and Forestry,
Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller
panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000,
SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof
certifications from IECEX and ATEX, ensuring product quality, which
are comparable to international brand like Honeywell, MSA, RAE, but
our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector
for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the
products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide
lifetime maintenance.
