CO O2 H2S EX 4 in 1 portable multi gas detector with international
top sensor
Factory information
For years, Yuante always insists on the management concept Market
is Orientation;Innovation is motivation; Quality to
survival;Development to growth”. With friendly, open and strict
corporate culture and standardized management, Yuante gathers a lot
of talents, and builds up the management team and R&D team. All
the staff cooperates well in product development, production and
maintenance, and has a deep understanding of the concept of
customer oriented ”and has the service spirit through the company
operation and management, to win the trust and support from
custmers.
Product information

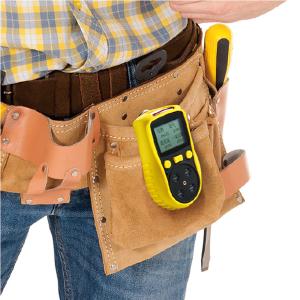

YT-1200H-S series gas detector is kind of mini size, low cost and
high accuracy portable multi gas detector. Easy to operate,
comprehensive functions, can measure toxic gases, flammable gases
and oxygen gases, etc in hazardous environments. The detector is
with back clip, protected by silicone case, suitable for different
kinds of situations.
Specifications
| Gas Detected | CO H2S O2 EX |
| Detection principle | Electrochemistry, catalytic combustion |
| Sampling Method | Diffusion |
Measure Range |
| Resolution | 0.01%vol, 0.1ppm,1%LEL |
| Precision | ≤± 5% F.S |
| Signal Output | High-speed data transmission by USB, available for data downloading
and
printing (optional function) |
| Charging Time | 4~6h | Working Time | 14h |
Battery | 3.7V | Capacity | 2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | II 2G Ex ia IIC T4 Ga IP66 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Housing Material | ABS+ leather case |
| Dimensions | 131*83*35mm | Weight | 240g |
Characteristics
1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can
download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
6. The gas concentration unit PPM and mg/m3 can be shifted quickly.
Built-in micro sampling pump, 10 grades of suction are available.
7. Explosion-proof certification, explosion-proof grade: II 2G Ex
ia IIC T4 Ga IP66.
8. Monitor the specified gas concentration in environment and
enclosed space and alarm.
9. With Self-calibration and zero calibration functions, makes the
detection more accurate and reliable.
10. One press to restore factory setting, free from the bother of
mis-operation With temperature and pressure compensation, this is
able to realize gas concentration compensation under conditions of
different temperatures or pressures.
11. Two-stage alarm with sound and light, alarm point is settable.
12. Rechargeable lithium polymer battery of large capacity.
13. Special engineering plastics housing of high intensity,
anti-skipping,
14. Water-proof, dust-proof, explosion-proof.
Services:
- 1. One year free warranty.
- 2. All machines are debugged before shipment.
- 3. Lifetime technical support and service.
- 4. 24 hours on line or phone or by email technical support.
- 5. We offer detailed machine manual and software manual.
- 6. Our factory make a vivid training CD.
- 7. Life-long free maintenance.
- 8. Free training in our factory.
Other normal gas types (Gases are not listed can be customized)
Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
